Blackmagic
Blender Atem Mini Pro
€438.70
Transform your video experience with the Mixer Blackmagic Atem Mini Pro, combining performance, technology, and modern design for your home.
Description + -
+
-

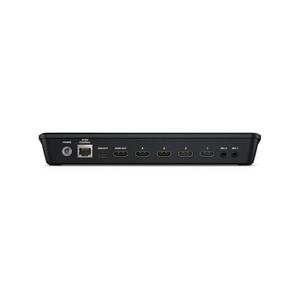

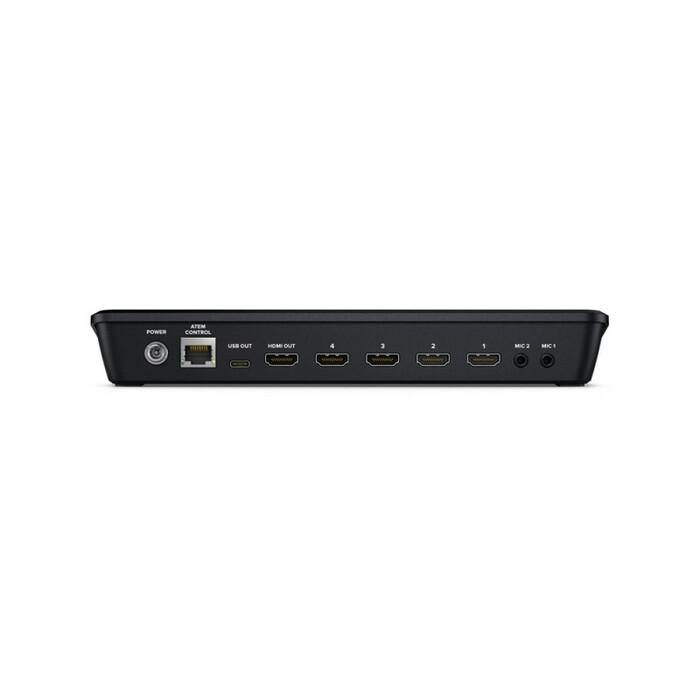

- Connections:
- Total number of video inputs: 4
- Total number of video outputs: 2
- Total number of auxiliary outputs: 1
- Total number of audio inputs: 2 x 3.5 mm stereo mini jack
- Total number of audio outputs: None, audio only integrated
- Timecode connection: None
- HDMI video inputs: 4 x type A HDMI, switchable to HD 10 bits. 2 channels of integrated audio.
- Video inputs synchronisation: On the 4 HDMI inputs
- Frame rate and format converters: On the 4 HDMI inputs
- Programme output HDMI 1
- Ethernet: Ethernet supports 10/100 BaseT for software control, software updates, and direct or network panel connection.
- Computer interface: 1 x USB type C 3.1 Gen 1 for recording to external disk, webcam output signal, software control, software updates, and panel connection.
- Audio:
- Audio mixer: 6 inputs x 2 channel mixer
- Possible selection between On/Off/Audio-Follow-Video per channel and independent gain control for each channel.
- Level and peak metering. New Fairlight audio enhancements: Compressor, gate, limiter, 6-band parametric equaliser. Master gain control
- Analogue input: Asymmetric stereo
- Analogue input delay: Up to 8 frames
- Input impedance: 1.8k
- Maximum input level +6dBV
- Microphone power: Available on both 3.5mm mini jack connections
- Streaming:
- Streaming via Ethernet The ATEM Mini Pro supports live streaming via Ethernet using the Real Time Messaging Protocol (RTMP)
- Recording:
- Direct recording 1 x USB-C 3.1 Gen 1 expansion port allowing external media to record directly a .mp4 H.264 with AAC audio in ATEM video standard
- Media format Supports media formatted in ExFAT (Windows/Mac) or HFS+ (Mac)
- Multi View Monitoring:
- Multi View Monitoring: multi view 1 x 10 windows, including configurable Programme/Preview left/right windows, 4 HDMI inputs, media player, streaming status, recording status, and audio indicators
- Multi view video standard: HD
- Media player:
- Media players: 1
- Fill and key channels for each media player
- Media library capacity for still images 20 with fill and key signals
- Still image formats for media library PNG, TGA, BMP, GIF, JPEG and TIFF

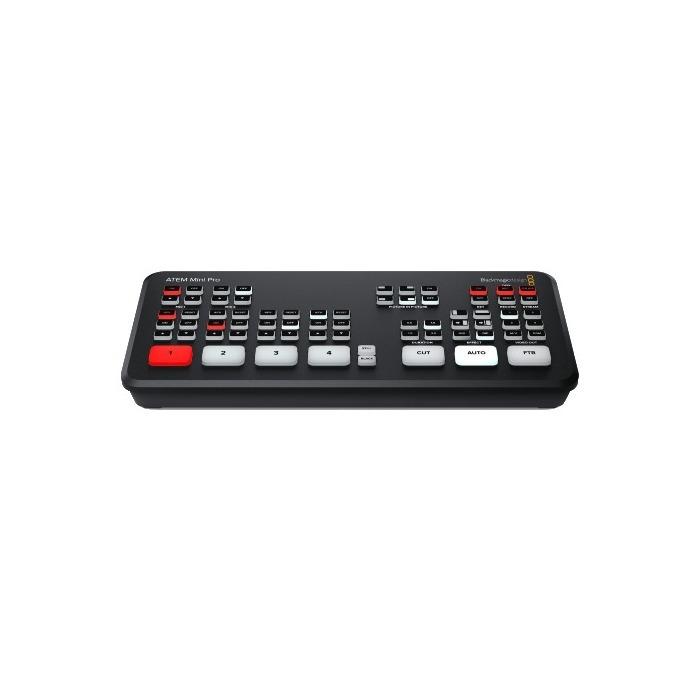

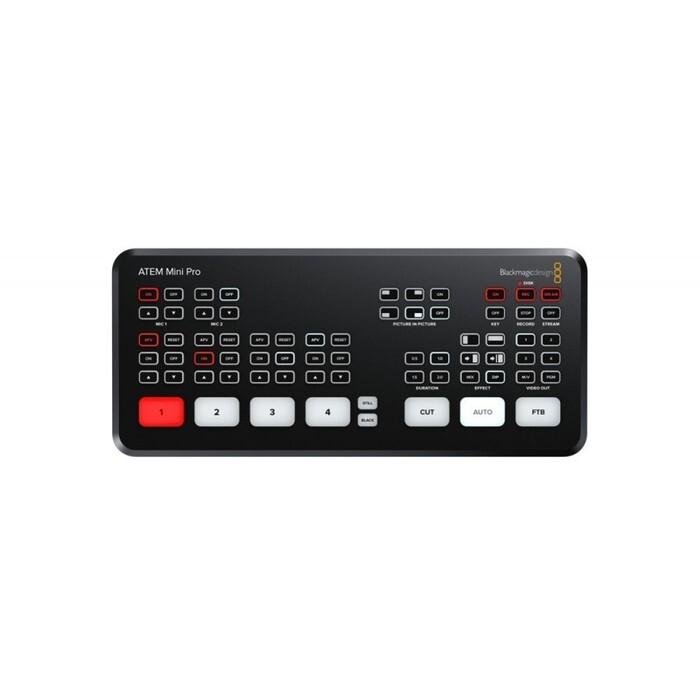

- Controls:
- Control panel: Built-in control panel. Software control panel with camera control function included
- Optional hardware panel support
- Connection for control panel: Ethernet supports 10/100/1000 BaseT standards. Ethernet provides a direct connection between the panel and the chassis, or via the network. The ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C for software updates
- Control panel compatibility: ATEM Software Control Panel provided. Also compatible with the ATEM 1 M/E Advanced Panel and the ATEM 2 M/E Broadcast Panel
- Included control panel: ATEM Software Control Panel included for free for Mac 10.14 Mojave, Mac 10.15 Catalina or a later version and Windows
- Operating system: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 10 in 64 bits
- Power supply: 1 x external 12V power supply
- Power consumption 30W
- Dimensions: 237.5 x 103.5 x 35 mm
- Weight: 550 g
