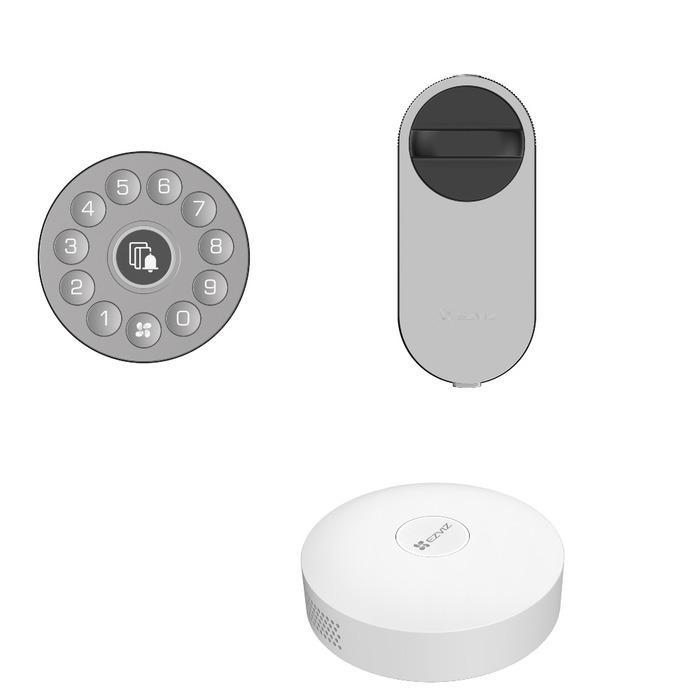

Smart lock DL01S Hub

When paired with the connected lock and KeyPad Ezviz, the Hub ensures interoperability of your detection systems, offering ever-expanding possibilities for home security.

Available at Innov8, this home gateway Ezviz is the central system for your Ezviz detectors, so you have everything under control at your fingertips.

Very easy to use, you can place the Hub Ezviz practically anywhere: coffee table, bedside table, shelf, or any other convenient spot. You can then connect it via an Internet cable or through your home's Wi-Fi network. This way, you'll enjoy stable performance safely.

With the Ezviz app, all possibilities are open to you. Personalise alarm sounds as well as add compatible devices to your security system (up to 64 devices).

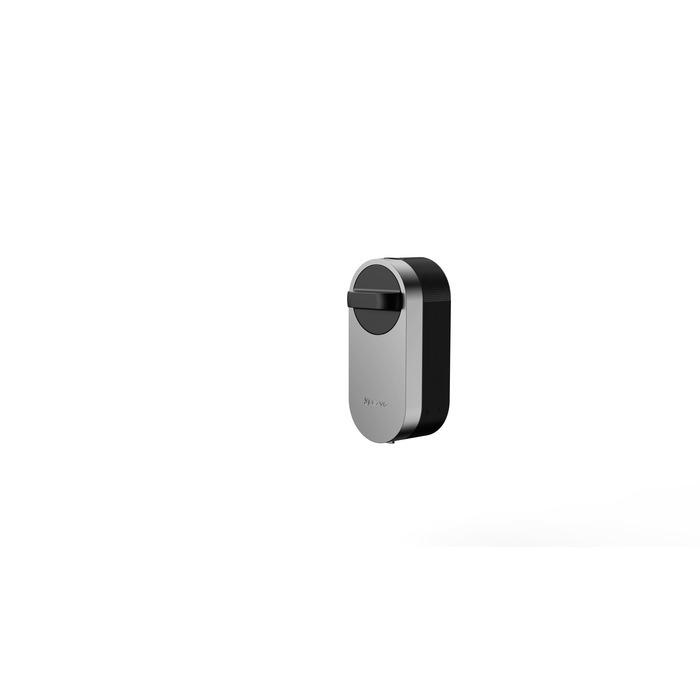

• CONNECTED LOCK DL01S
• Specifications:
• Material: plastic casing and aluminium alloy button
• Dimensions: 126.9 × 43.2 × 56.9 mm
• Communication: EZVIZ Connect Zigbee (requires the use of the A3 home gateway, sold separately)
• Battery type: 4 AA alkaline batteries
• Operating conditions: From -25 °C to 55 °C, humidity of 10% to 95% (non-condensing)
• Functions:
• Auto-lock: supported (works with door sensor)
• User rights management supported
• Mobile push notifications supported (requires the use of the A3 home gateway, sold separately)
• Privacy mode supported
• Low battery alert supported

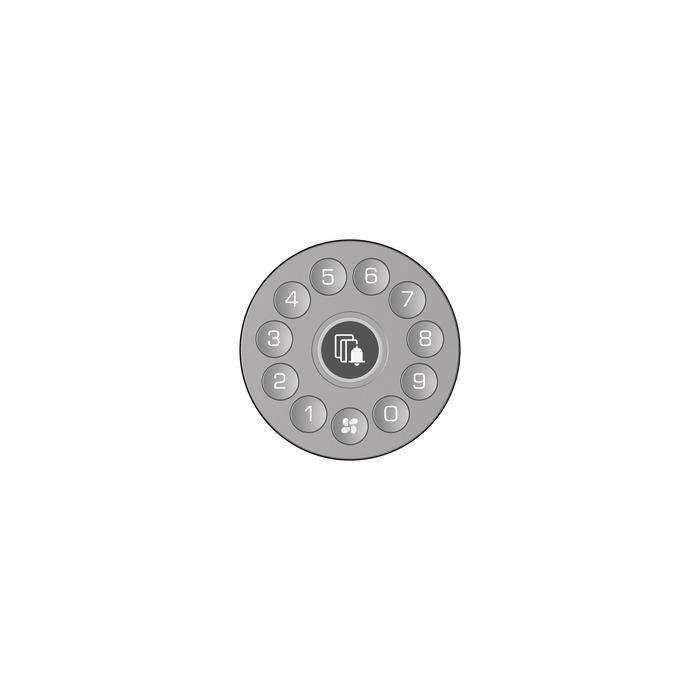

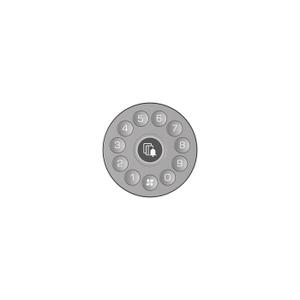

• KEYPAD
• Specifications:
• Material: plastic casing
• Dimensions: diameter 71 × 30 mm
• Battery type: 2 AA alkaline batteries
• Operating conditions: from -25 °C to 55 °C, humidity of 10% to 95% (non-condensing)
• Protection rating: IP56
• Functions:
• Password unlocking supported (up to 50 sets of passwords with 6 to 10 digits each)
• Anti-spy technology supported
• Electronic doorbell supported
• Low battery alarm supported
• Anti-tamper alarm supported
• Auto-lock on failed attempts supported (default lock duration is 3 minutes if someone tries to unlock using the wrong password 5 times in 5 minutes)
• Temporary password supported (requires the use of the A3 home gateway, sold separately)
• Lock activity log supported (requires the use of the A3 home gateway, sold separately)
• Certifications: CE / UKCA / RoHS / WEEE / REACH
• HUB
• General:
• Operating conditions: from -10 to 55 °C, humidity of 95% or less (non-condensing)
• Dimensions: diameter 70 × 25.4 mm
• Net weight: 71 g
• Packaging dimensions: 95.5 × 80.5 × 98.5 mm
• Power supply: via micro-USB, 5 V DC/1 A
• Power consumption: max. 3 W.
• Network:
• Communication method: RJ45 network cable Wi-Fi 2.4 GHz ZigBee 3.0
• Communication distance: Wi-Fi (2.4 GHz) < 200 m ZigBee 3.0 < 200 m (tested in open space)
• Integrated antenna
• Certifications: CE, FCC, RoHS, REACH, WEEE, UKCA
